● 본 제품은 교환 및 환불, A/S, 기술문의가 불가능한 상품입니다.

	Description
	The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the ARM®Cortex®-M7 core. The discovery kit enables a wide diversity of applications taking benefit from audio, multi- sensor support, graphics, security, video and high-speed connectivity features. The Arduino™connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.
	Features
	STM32F769NIH6 microcontroller featuring 2 Mbytes of Flash memory and 512+16+4 Kbytes of RAM, in BGA216 package. On-board ST-LINK/V2-1 supporting USB reenumeration capability. USB ST-LINK functions: virtual COM port, mass storage, debug port. 4" capacitive touch LCD display with MIPI® DSI connector (on STM32F769I-DISCO only). SAI audio codec. Two audio line jacks, one for input and one for output. Stereo speaker outputs. Four ST MEMS microphones on DFSDM inputs. Two SPDIF RCA input and output connectors. Two push-buttons (user and reset). 512-Mbit Quad-SPI Flash memory. 128-Mbit SDRAM. Connector for microSD card. Wi-Fi or Ext-EEP daughterboard connector. USB OTG HS with Micro-AB connector. Ethernet connector compliant with IEEE-802.3-2002. Five power supply options: ST LINK/V2-1. USB HS connector. 5 V from RJ45 (Power Over Ethernet). 5 V from Arduino™or external connector. USB charger. Power Over Ethernet based on IEEE 802.3af (Powered Device, 48 V to 5 V, 3 W) Power supply output for external applications: 3.3 V or 5 V Arduino™Uno V3 connectors Comprehensive free software including a variety of examples, part of the STM32Cube package Supported by a wide choice of integrated development environments

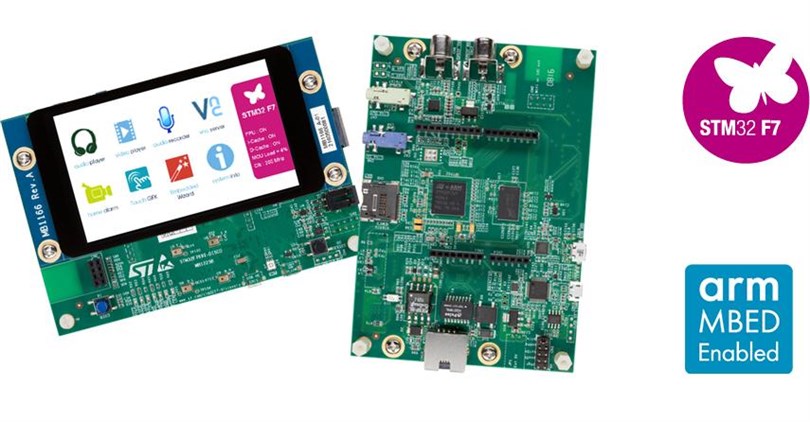

	<제품 앞, 뒤 사진 >
